Komatsu oil resistant 4SP hydraulic parts

Short Description:


Product Detail

FAQ

Basic Info

    Model No.: 4SP

    Material: Silicone Rubber, PP

    Color: Black, Black/red/blue/yellow

    Temperature: -30 Up To 90 Degree

    Length: 2m/50m Or According To Your Demands

    Model Number: Different Diameter

    Suitable Hose: 8-10 Mm Outer Diameter

    Inner Tube: Oil Resistant

    Usage: Protect Hose

    Certificate: ISO9001:2008

    Name: Komatsu Hydraulic Parts

    Capability: Heat-resistant Rubber Hose

Additional Info

    Packaging: carton and wooden case

    Productivity: Ningbo,Shanghai,Tianjin

    Brand: Topa

    Transportation: Ocean,Land,Air,DHL/UPS/TNT

    Place of Origin: China

    Supply Ability: Ningbo,Shanghai,Tianjin

    Certificate: Hydraulic Hose ISO

    Port: Ningbo,Shanghai,Tianjin

Product Description

Komatsu oil resistant 4SP hydraulic parts

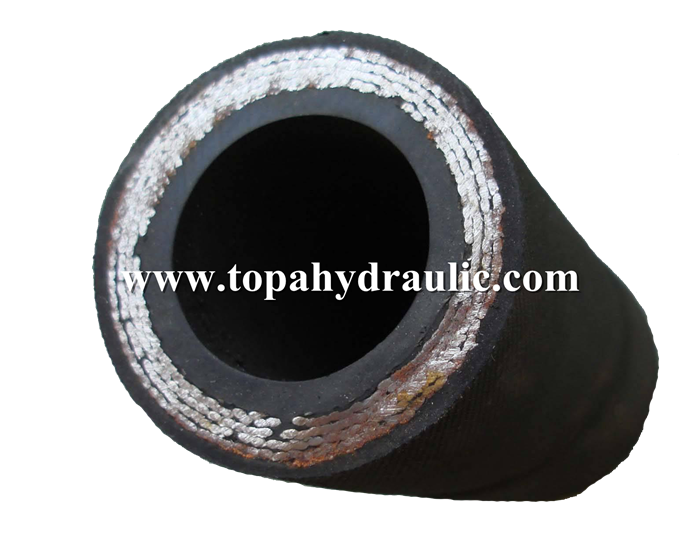

This hydraulic parts Rubber Hose is composed of 3 layers,an liquid resistant synthetic rubber, a steel wire reinforced layer and an excellent weather resistance ,antistatic properties and flame retardant synthetic rubber cover layer. protective layer can be added if special requirements to the rubber rubber cover layer.

Komatsu oil resistant hydraulic parts

Product Description

Hydraulic parts – Internal hose
Substratum of synthetic rubber resistant to oils.
Hydraulic parts – Reinforcement
1 bride of high resistant steel, 2braide and also have four-spiral.six wire reinforcement
Hydraulic parts - Covering
Black synthetic rubber resistant to abrasion, oils, fuels, ozone, atmospheric agents.
Working temperature
from -40°C up to+100°C


DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m meters
10 3/8 9.5 17.5 21.4 44.5 6450 180.0 26000 180 0.78 20 to 40
13 1/2 12.7 20.2 24.0 41.5 6000 166.0 24000 230 0.89 20 to 40
16 5/8 15.9 23.8 28.2 35.0 5000 140.0 20000 250 1.11 20 to 40
19 3/4 19.0 28.2 32.2 35.0 5000 140.0 20000 300 1.59 20 to 40
25 1 25.4 35.5 39.7 28.0 4000 112.0 16000 340 2.02 20 to 40
32 1 1/4 31.8 46.0 50.8 21.0 3000 84.0 12000 460 3.32 20 to 40
38 1 1/2 38.1 52.4 57.7 18.5 3650 74.0 10800 560 3.70 20 to 40
51 2 50.8 65.3 69.6 16.5 2360 66.0 9600 660 5.47 20 to 40

Application

Hydraulic parts be used to convey the hydraulic liquid such a hydraulic oil, fuel oil, lubricating, water emulsion, hydrocarbon and son on in order to transport high pressure liquid and hydraulic convering for engineering project which temperature is -40℃~+100℃.

Komatsu oil resistant hydraulic parts

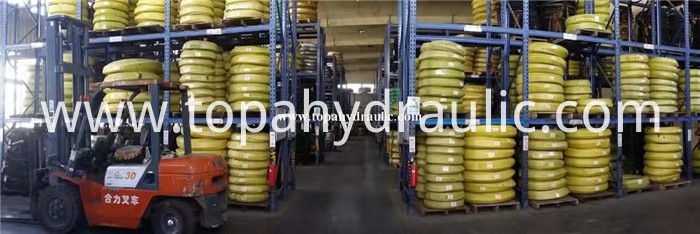

Workshop

We are a professional manufacturer of Hydraulic parts, hose fitting, hose assembly design. Also have good resources to supply the match hose machinery and oil seal parts. We focus on the need of customers, a wide range of diversity, reasonable price and on-time delivery.Komatsu oil resistant hydraulic parts

Package&Shipping

The general package of Hydraulic parts is plastic or woven bag with pallet under the hose, which can be seen below. We, however, can also provide special package according to customer`s requests. Komatsu oil resistant hydraulic parts

Advantages

Our Hydraulic parts are produced strictly accordance with national standard.
1.Less MOQ: It can meet your promotional business very well.
2.OEM Accepted : We can produce any your design .
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).


FAQ

1. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.

2. Is the sample available?
Yes, samples are available for you to test the quality.If we have samples in warehouse,freight can be paid by your side

3. Are you a Manufacturer?
100% manufacturer, Welcome you visit our production line.

4. What`s your usual payment term for orders?
T/T 30% as the deposit, and T/T 70% balance paid before loading.
Or any payment term to discuss.

Komatsu oil resistant hydraulic parts
Please join our mailing list.Click[Send” now!

How To Contact Us?

Sunflex flexible reinforced hose and fittings

Looking for ideal Komatsu Hydraulic Parts Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Oil Resistant Hydraulic Parts are quality guaranteed. We are China Origin Factory of 4SP Hydraulic Parts. If you have any question, please feel free to contact us.

Product Categories : Hydraulic Hose
