High pressure stainless steel flexible rubber hydraulic hose

Short Description:


Product Detail

FAQ

Basic Info

    Model No.: Sae R1

    Material: Natural Rubber

    Capability: Water Rubber Hose

    Color: Black, Black

    Temperature Range: -40°C To +100°C

    Cover: Abrasion And Weather Resistant Synthetic Rubber

    Impulse Cycles: 200,000

    Reinforcement: One High Tensile Steel Wire Braid

    Size: 3/16″~2″

    Tube: Oil Resistant Synthetic Rubber

    Surface: Black Wrapped Hydraulic Hose

    Name: High Pressure Stainless Steel Flexible Rubber Hydraulic Hose

Additional Info

    Packaging: The general package of hydraulic hose is plastic or woven bag with pallet under the hose, which can be seen below. We, however, can also provide special package according to customer’s requests.

    Productivity: 900000 meter per month

    Brand: Topa

    Transportation: Ocean,Land,Air

    Place of Origin: Heibei,China

    Supply Ability: 900000 meter per month

    Certificate: Hydraulic Hose ISO

    Port: Tianjing,Ningbo,Shanghai

Product Description

Sae R1 Euroflex 5 inch rubber hydraulic flexible fuel starbuzz e hose

Product Description

What details of Rubber Hose

Tube : Oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber

Temperature range: -40 °C to +100 °C

Impulse cycles: 150,000

DN dash Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Test Minimum Bend Radius
pressure
inch mm mm mm Bar psi bar bar mm
6 -4 1/4 6.4 11.1 13.4 225 3265 900 450 90
8 -5 5/16 7.9 12.7 15 215 3120 850 430 115
10 -6 3/8 9.5 15.1 17.4 180 2610 720 360 130
12 -8 1/2 12.7 18.3 20.6 160 2320 640 320 180
16 -10 5/8 15.9 21.4 23.7 130 1885 520 260 200
19 -12 3/4 19 25.4 27.7 105 1525 420 210 240
25 -16 1 25.4 33.3 35.6 88 1275 350 175 300
32 -20 1 1/4 31.8 40.5 43.5 63 915 250 125 420
38 -24 1 1/2 38.1 46.8 50.6 50 725 200 100 500
51 -32 2 50.8 60.2 64 40 580 160 80 630

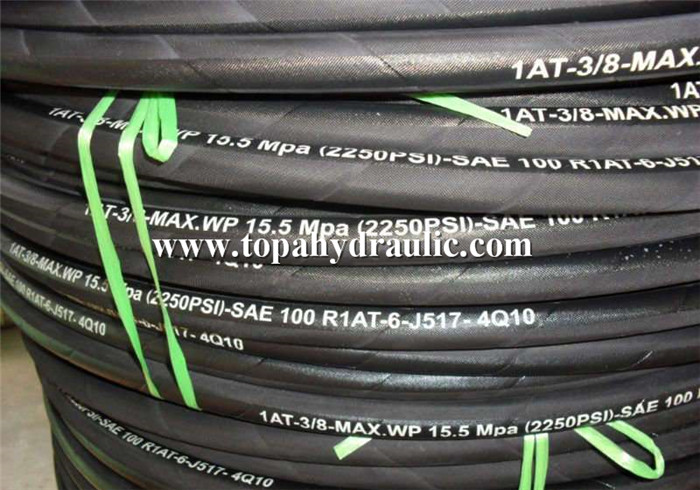

R1 Smooth Cover Hydraulic Hose

Workshop

What is workshop of hose

We focus on producing steel wire braid hose,spiral rubber hose, brake hose, Hydraulic Hose, refueling pipes,Hose Pipe, sand blasting hoses and a series of high and low pressure rubber hoses and assemblies, and good at developing various special purpose Hose Pipe for users.

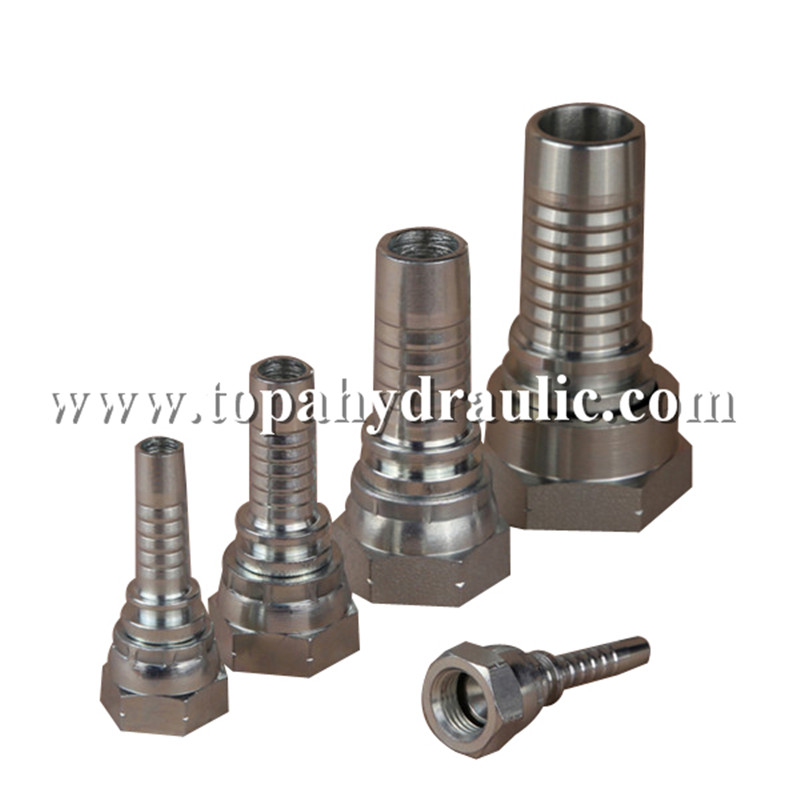

Metric Hose Fittings

Hot Sale Products What is hot sell of flexible hose

Wire braid hydraulic rubber hose hose

1.SAE 100R1AT/ DIN EN853 1SN High Pressure Hose

2.SAE 100R2AT/ DIN EN853 2SN fuel hose

3.SAE R5 hydraulic hose press

4.SAE R16 braided hose

Wire spiral hose- pipe

1.DIN 20023 EN856 4SP flexible metal hose

2.DIN 20023 EN856 4SH pressure hose

3.SAE 100 R12 rubber air hose

4.SAE 100 R13 8 inch flexible hose

Fibre braid steel hose

1.SAE 100R7/EN855 R7 hose rubber

2.SAE 100R8/EN855 R8 hose press

3.SAE 100 R3 industrial hose

4.SAE 100 R6 manuli hydraulic hose

Other oil hose

1.SAE 100R14 (Teflon hose) ptfe hose

2.Test hose Air Compressor hose

Packaging & Shipping What is Packaging &Shipping of braided hose China wholesale custom Rubber Hose and fitting
1:Products with plastic cover
2:Packaged in woven bag
3: woven bag in carton boxes if you require
4:Carbon boxes on wooden cases or wooden pallet with Iron belt or as per customers’ request. Hydraulic Hose Suppliers
FAQ

What is questions from clients of hydraulic hose press

1.Is the sample available?

Yes, Hose Pipe samples are available for you to test the quality.If we have samples in warehouse,freight can be paid by your side.

2. What is your standard packing?

We can provide carton,wooden crate, or braided bag as packaging for stainless steel hose, also could as per your requirements.

3. Can you produce product with my own brand?

Yes, we have been offering high pressure hose OEM services for many years.

Contact us

Please inquiry us for Hydraulic hose today, we will send you more information.

business card

What is other hot sell products, excpet for rubber hose

26711 Metal Hydraulic Fitting

22641 Hydraulic Fitting Adapter

20111 Coupling For Hydraulic Pump

1j943 24291rw Captive Seal Hollow Hex Plug Hydraulic Fitting

Looking for ideal Flexible Hydraulic Rubber Hose Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Pressure Rubber Hydraulic Hose are quality guaranteed. We are China Origin Factory of Stainless Steel Flexible Rubber Hose. If you have any question, please feel free to contact us.
